FRAC VALVES

Well Head & Well Control Manual Ball Scree Operated & Hydraulic Gate Valves with various sizes and pressure ratings.
View

Hydraulic & Ball Screw Operated Frac Valves

Manual, Ball Screw Operated & Hydraulic Gate Valves with various sizes and pressure ratings.

An extension added to a short face-to-face valve to conform to face-to-face dimensions. API 6A specifies requirements and gives recommendations for the design, manufacturing, testing, and documentation of ball, check, gate and plug valves for application in pipeline systems.

Adapter Spools

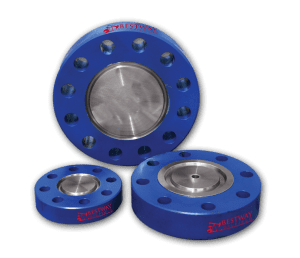

Blind flanges are used to seal the end of high pressure openings. They are commonly used for capping the flow of gas or liquid through a combination of oil and gas products. Blind flanges also allow for easy access to the equipment in case work must be done inside the flow.

Blind and Test Flanges

Flange Crosses and Tees according to the design requirements and face to centerline requirements of API Spec 6A.

Crosses and Tees

A Double Studded Adapter (DSA) is commonly used to connect flanges with different nominal sizes, pressure ratings, and configurations.

Double Studded Adapters

Flange Crosses and Tees according to the design requirements and face to centerline requirements of API Spec 6A.

Drilling Spools

Goat head frac adaptor is the equipment often used on frac tree and frac stack during fracturing work, which is often in studded and flange-end connections, which is often in studded and flange-end connections

Goat Heads

Pressure-containing piece of equipment having end connections, used below or between drill-through equipment.

Spacer Spools

Various sizes and pressure ratings, custom manufacturing available.

Test Flange

Various sizes and pressure ratings, custom manufacturing available.

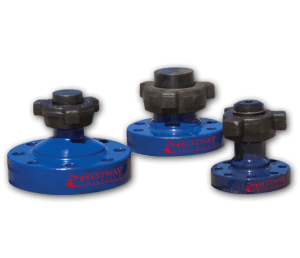

Weco Flanges are the most complete line of standard and sour-gas service pipe connectors in
the world.

Weco Flanges with Hammer Nut & Plug

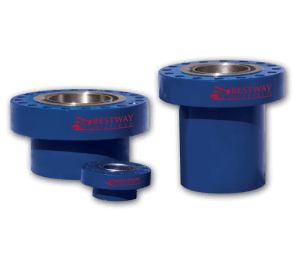

A weld neck flange (also known as a high-hub flange and tapered hub flange) is a type of flange. There are two designs. The regular type is used with pipes. The long type is unsuitable for pipes and is used in process plant.

Weld Neck Flanges


COMPONENTS

Spools and Adapters Flanges, Tees & Crosses

View


EQUIPMENT

Well Head & Well Control Equipment, Sand Separators, and Plug Catchers

View

*Various sizes and pressures per customer configuration.

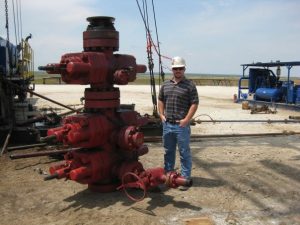

Single Ram, Double Ram, Annular BOP’s with various sizes and pressure ratings. Styles in Cameron, Shaffer and Hydril

BOP's

Various sizes and pressure ratings, custom manufacturing available.

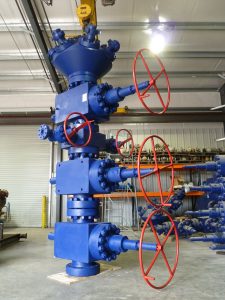

Frac Stacks

Various sizes and pressure ratings, custom manufacturing available.

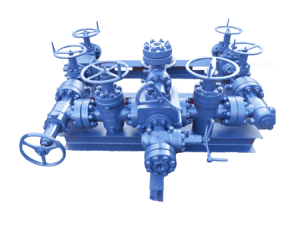

Manifolds
