Mark IV

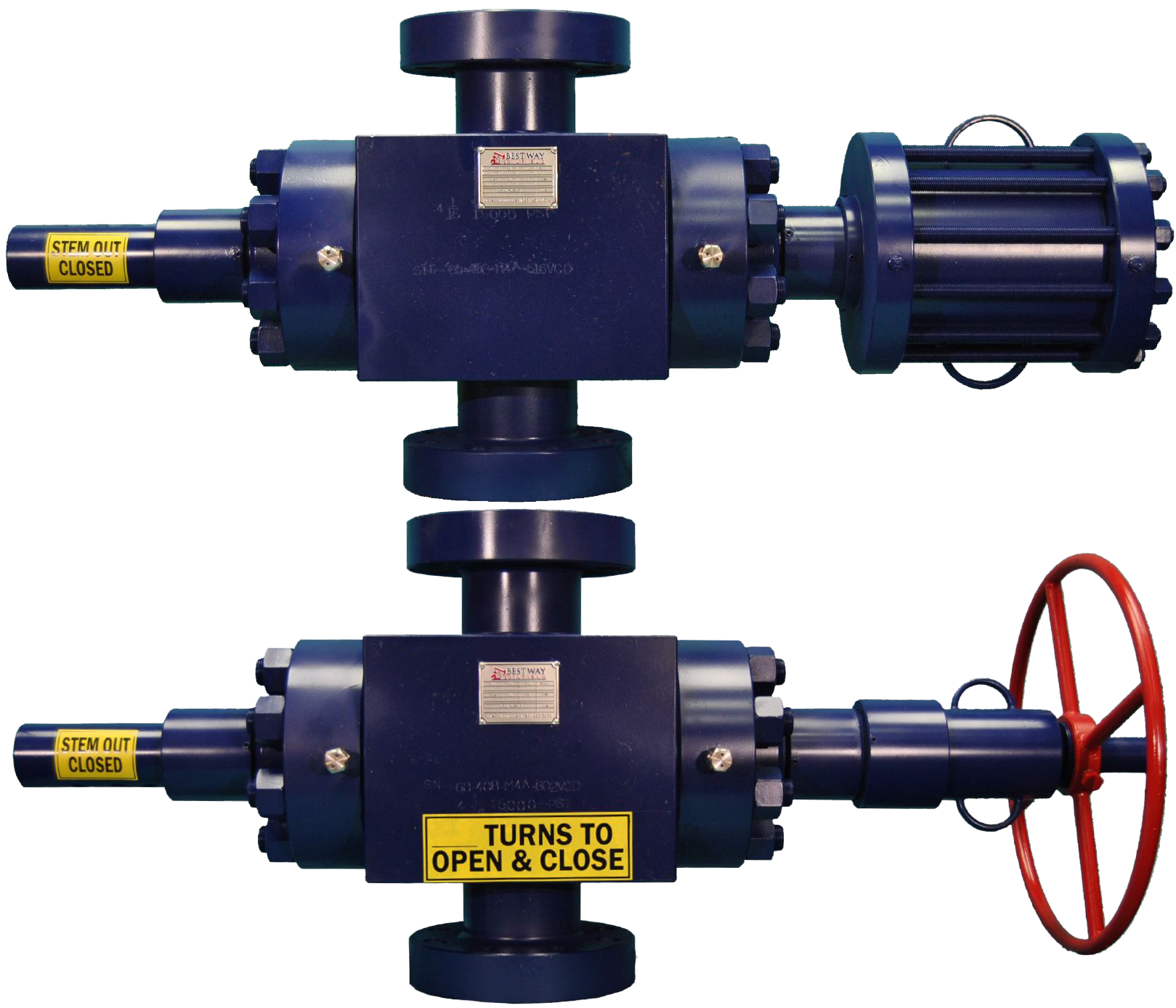

The Mark IV Frac Valve is designed to meet the high demands of current fracking technology. Custom sizes and pressures available.

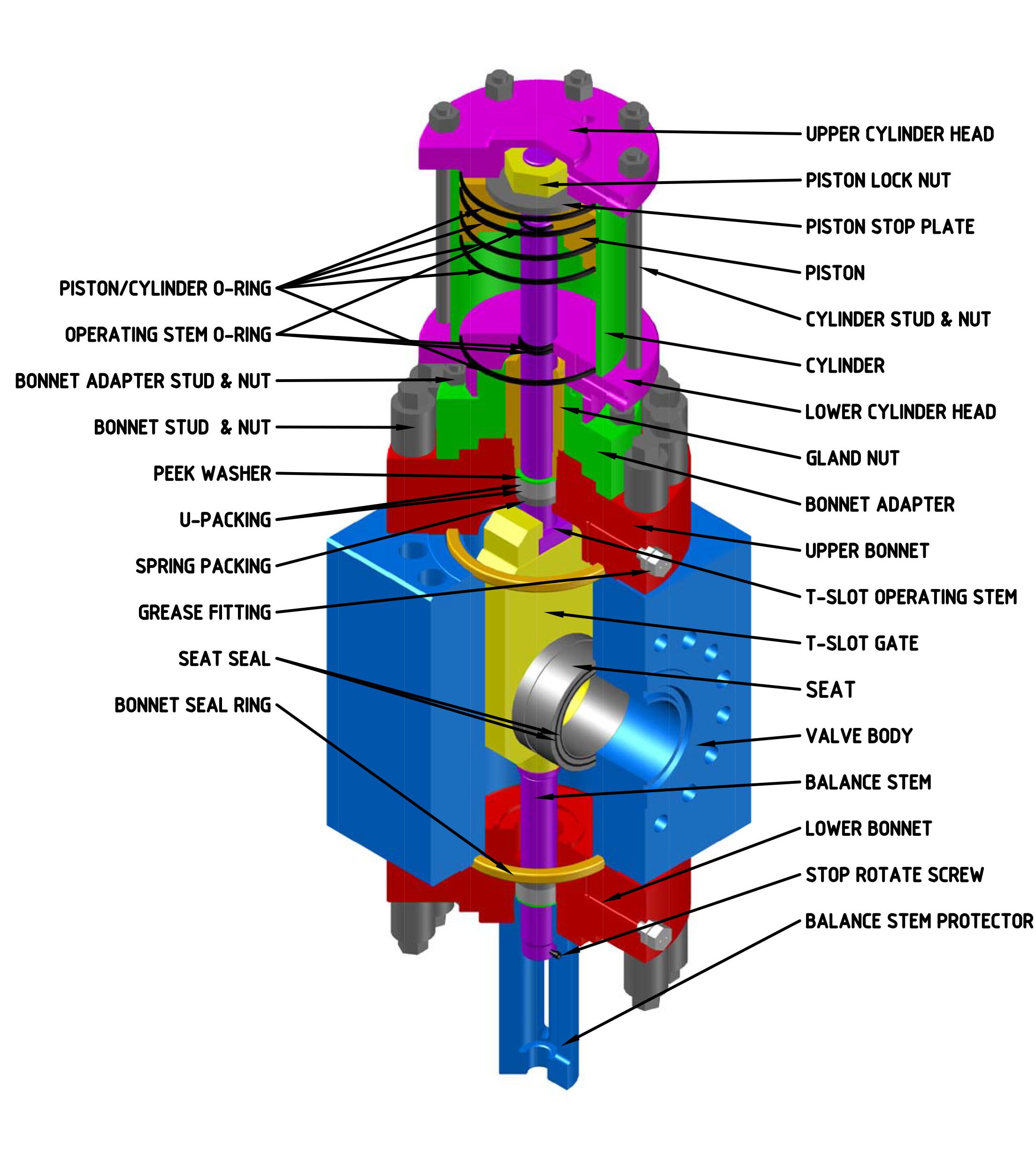

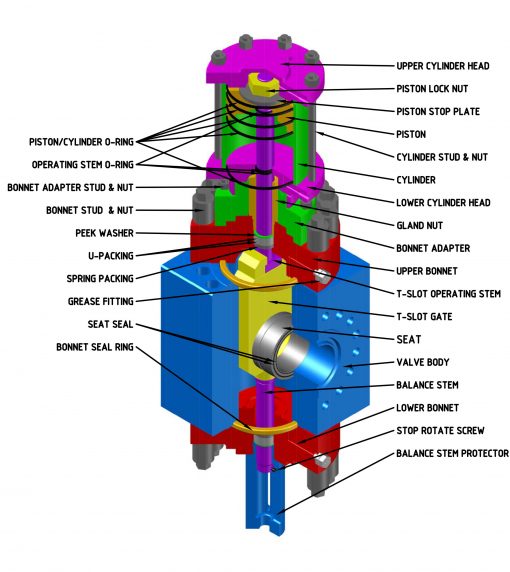

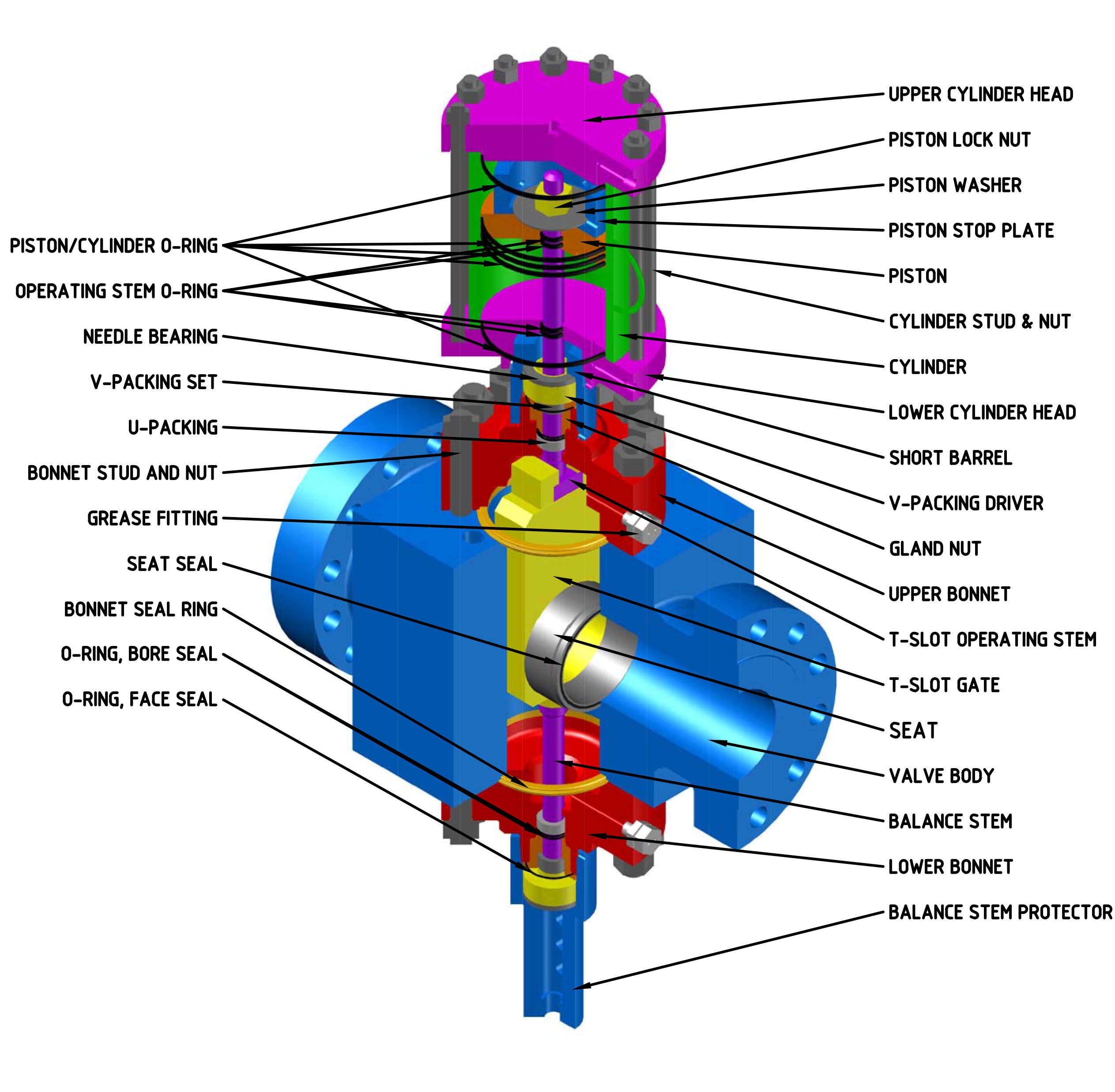

  • T slot gate to stem connection eliminates possibility of separation during a frac-job
  • T Slot connection provides a true floating gate allowing gate to flow freely for better sealing under low and high pressure.
  • Conversion will have double packing on both stems. This has proven very effective, especially in extreme temp and environments.
  • Studded connection to reduce wing section length and total weight.
  • Gate and seat size reduction lowering parts costs to the customer.
  • Smaller body cavity for less grease and sand intrusion.
  • Lower purchase price through innovation.
